Waterjet 200 bar HPC-200

Waterjet 200 bar HPC-200 is one of the highest quality and most powerful waterjet 200 bar produced by MTCO Industrial Group. This machine has an Italian Bertolini motor and a plunger pump with a fabric-cobbled pump motor, which has high durability and saves you from the cost and after-sales service. This water jet has three phases; the output water flow is 17.4 L/min.

Suppose you are looking for a powerful industrial waterjet in car washes or industrial and commercial centers. In that case, the industrial waterjet 200 bar HPC-200 is the best choice. With the ability to connect to three-phase electricity, this machine receives urban water as input. After passing it through a filter, it is directed to the pump to increase power and speed and then sent to the output.

If you need an industrial waterjet connecting to single-phase electricity, check the 110-bar HPC-110 page.

The pump used in this machine is a plunger type, fabric-cobbled with its Italian Bertolini motor. This fabric-cobbled pump motor is one of the most important strengths of this machine, which leads to maintaining the machine’s health in the long term and makes it unnecessary from side costs and after-sales services.

Waterjet 200-bar motor and pump are mounted on a steel trolley with a static color coating, which is also equipped with a cable and lance holder. The wheels of this trolley are of 200 mm type, which makes it easy to move the machine while crossing obstacles and rough surfaces.

Waterjet 200-bar is equipped with a reel hose that collects the 15-m hose. This multilayer hose can withstand pressure up to at least 1.5 times higher than the maximum pressure of the machine.

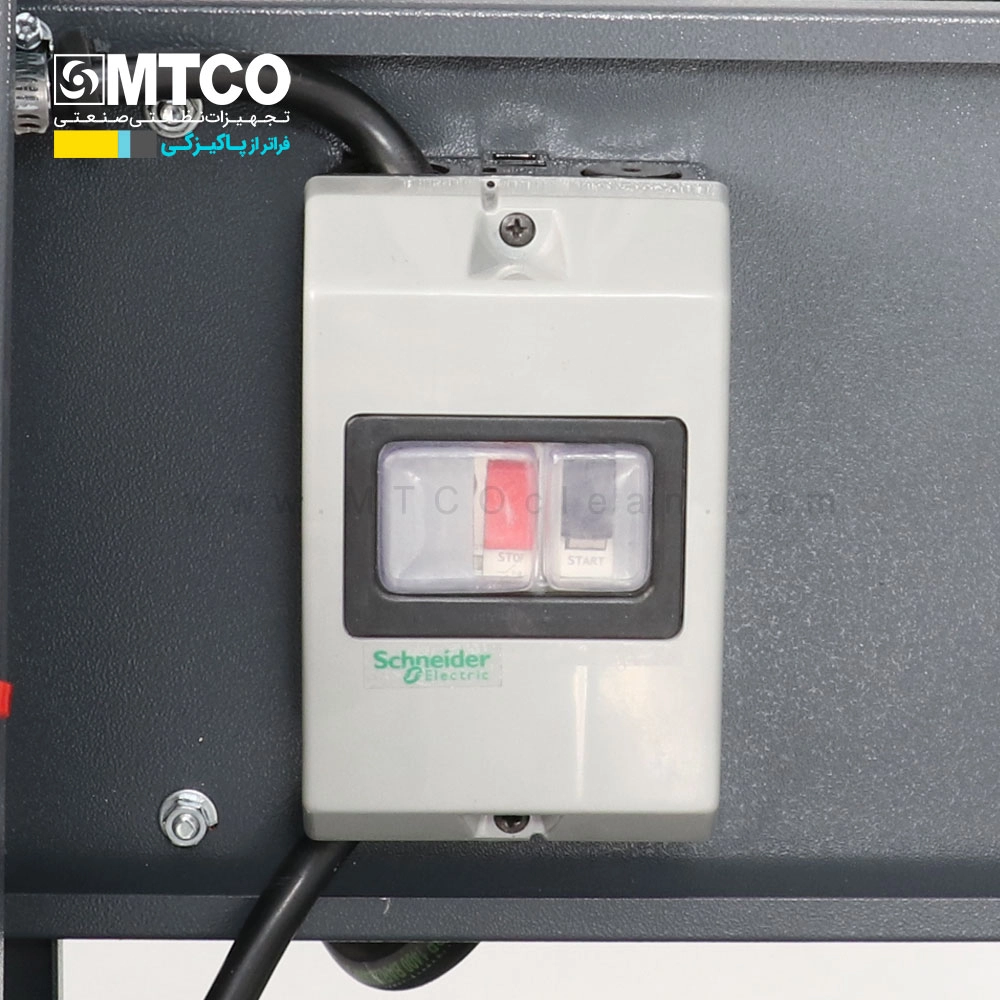

In addition to these items, the machine has an Italian trigger lance, an automatic cut-off, and a thermal control key. This thermal key is water, moisture, and heat insulation and controls the current passing through the machine and turns it off if needed to maintain the machine’s health.

Industrial waterjet 200-bar HPC-200 has 14 months warranty and 16 years of after-sales service, and it is possible to produce its hot water model on a customized basis.

Additional information

Device Type

Cold water – three phases

Max Working Pressure

200 bar

Output Water Flow

17.4 l/m or l/h

Max Inlet Water Temp

60 c

Pump Type

Plunger

Pressure adjustment

has it

Motor Type

Electric

Motor Brand

Bertolini (Italy)

Voltage

400 v

Frequency

50 Hz

maximum power

5500 W

Connection System

Cobble fabric

Disconnect System

automatic

Hose Length

15 m

نوع/ جنس شاسی

Four wheels / steel

Inlet water filter

has it

Hose collector

has it

Nozzle

blade

Weight

77.8 kg

Dimension

520x600x930 mm

Warranty/Service

14 months/16 years
